RICOH SC-10A

RICOH SC- 10A	Standard Model	Open Pricing
RICOH SC- 10A(H)	High Magnification Model	Open Pricing

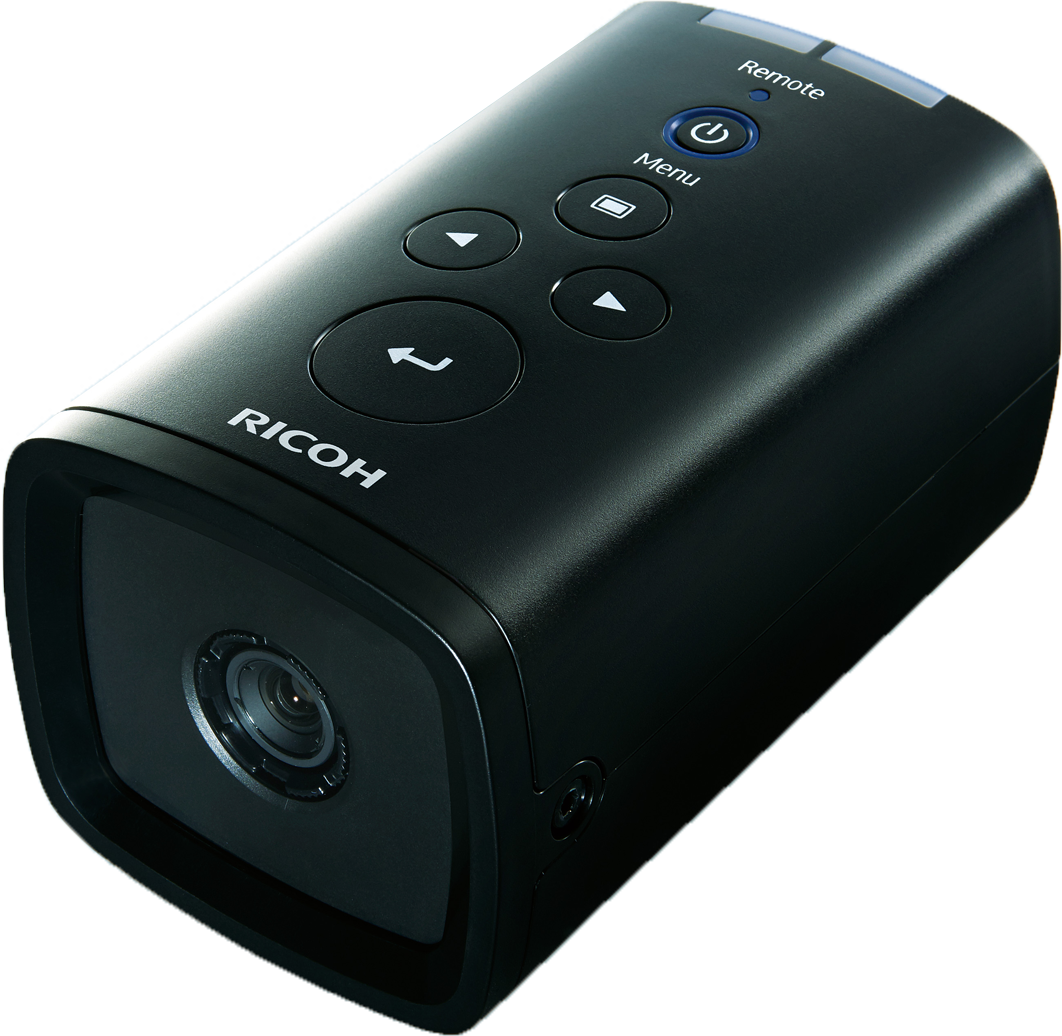

Work Assistance Camera System RICOH SC-10A

Automated Vision Inspection Systems For Industrial Applications

All-In-One Unit - easier to use Automatically checks work flow using image recognition & comparison Revolutionises workplace work flow

RICOH realizes Poka yoke by automatically checks similar part, incorrect part, work instruction and other assembly condition during the work process using pattern matching.
The data can be used for work analysis and traceability by recording the work result images and the result such as serial number and work time.

Operational errors prevented by image recognition

・Misstakes during the working process are prevented by halting progress to the next stage until work is recognized as correct.

Simple operation as all-in-one system

・The camera, image recognition, and application are integrated into one system, which makes its setup easy.
・Work instructions are easily imported using dedicated software.

Support for computerizing your workplace

・Work analysis and traceability are facilitated by the recording of result data.
・Paper reduction by the digitalized instructions and check sheets.

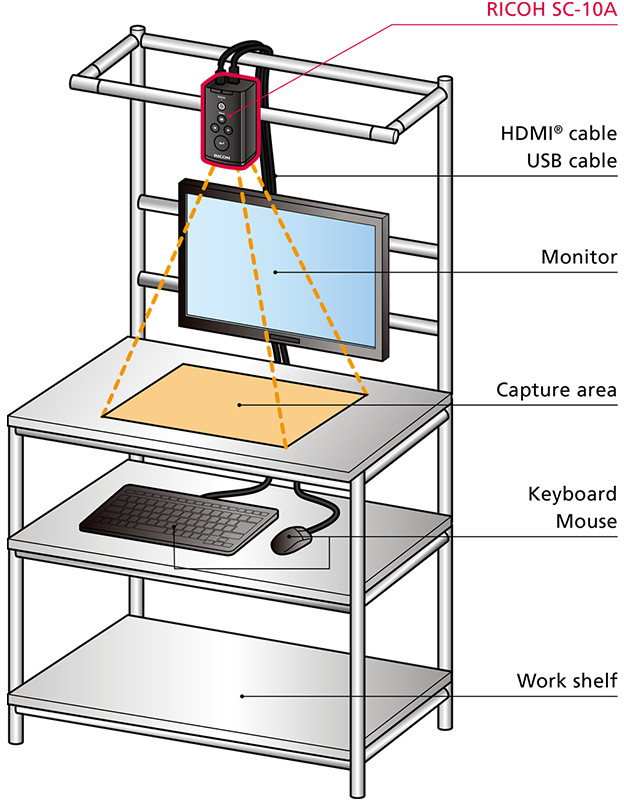

Image of System Configuration

Easy setup as all you need is a mouse keyboard and monitor.
RICOH SC-10A realize Poka yoke with spacing-saving as a PC is not required.

Features a high-magnification lens RICOH SC-10A(H)NEW

The inclusion of a high-magnification lens on the RICOH SC-10A(H) enables smaller objects to be targeted than the standard model.
The orientation of parts mounted to electronic substrates and whether or not minute parts used for assembly are present can also be checked, expanding its potential uses.

Images taken by high-magnification and standard models

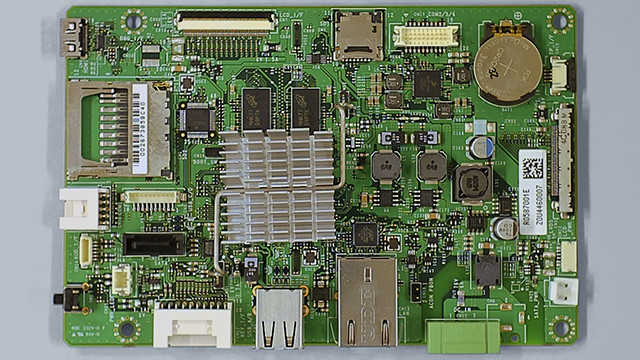

High-magnification model:RICOH SC-10A(H)

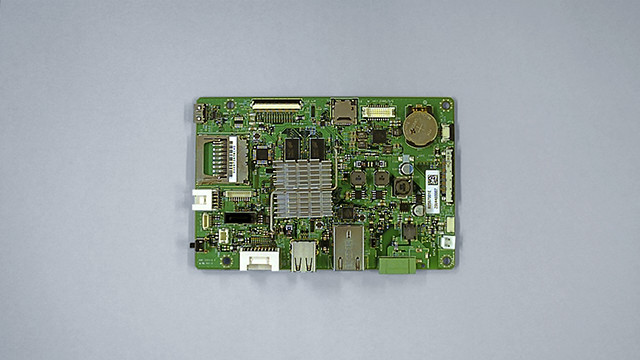

Standard model:RICOH SC-10A

Use in various scenarios!

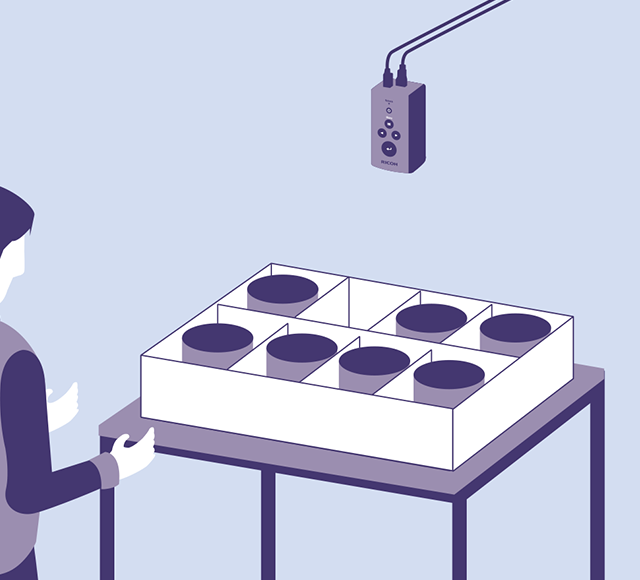

Scenario1

Setting / pick up process

・Check that the parts required for assembly are sufficient.
・Check that similar parts are not set.

Scenario2

Assembly process

・Display work orders on monitors.Determine whether work is progressing according to procedures.
・Check that no attachment parts are missing.

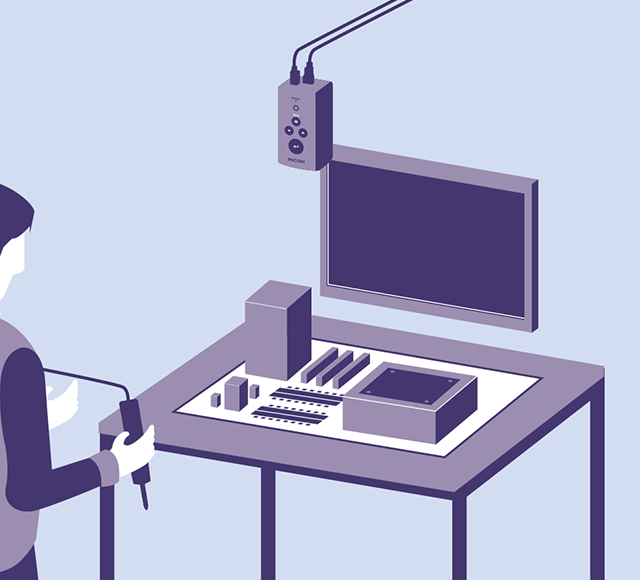

Scenario3

Inspection process

・Check that there are no attachment mistakes in assembled products/parts.
・Eliminate human error by labor saving visual checks.

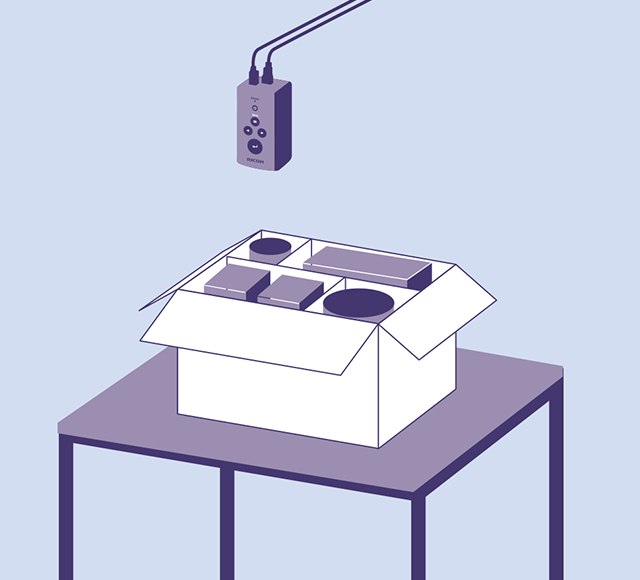

Scenario4

Shipping process

・Check that the package items of the product are packed according to procedures.

work assistance camera system RICOH SC-10A movie and success stories

Click here!
And you can watch several how-to videos to set up the work assistance camera system RICOH SC-10A and examples of success stories.

If you wonder about..
“Is it really easy to use?”
“How it work for me?”
Please watch the videos from here.

In addition, various useful documents are also available.
